Engineeredfortheharshestmotorways.
Built for expressways and harsh conditions. Tool-less servicing, aggressive heat-sink, 60 m/s wind survival.
Forged for the expressway.
The heavy-duty road light is built for the corridors that take the punishment — expressways through dust, motorways through monsoon, container ports in salt air. The aggressive heat-sink profile passively cools 240 W. The driver bay opens tool-lessly for field service. The optical chamber is sealed against insects and grit. Lumileds 3030 2D engine, programmable constant-current driver, IP66 / IK08, and 60 m/s wind survival — 216 km/h on the pole.
The headline figures that put Exceed Pro on tendered municipal projects.
- 60 m/s Wind survival
- 33K lm Peak output
- 195 lm/W LED efficacy
- 50K hrs Rated life
The completespecification.
01Electrical
- Wattage package
- 40 · 60 · 90 · 120 · 150 · 180 · 240 W
- Range available
- 30 W – 350 W on request
- LED driver
- Vossloh-Schwabe ComfortLine Prog S-1-10V-100V IP
- Driver type
- Constant Current Programmable LED
- Voltage range
- 100 – 277 V · 50 / 60 Hz
- Power factor
- ≥ 0.95 nominal
- Drive current
- 100 mA – 700 mA
- Surge protection
- 10 kV dedicated + 10 kV driver built-in
02Light
- Lumen package
- 5,600 · 8,400 · 12,600 · 16,800 · 21,000 · 25,200 · 33,600 lm
- Lumen range
- 4,550 – 42,990 lm available
- System efficacy
- ≥ 140 lm/W
- LED efficiency
- ≥ 195 lm/W
- Light source
- Lumileds 3030 2D
- CRI
- ≥ 70
- Beam angle
- Type II M 90° × 150° (other types available)
- CCT
- CW 5700K · NW 4000K · WW 3000K ±500K
- Lifetime
- 50,000 hrs (L70 @ Ta = 35°C)
03Environmental
- Mounting
- 48 – 60 mm pole, side entry
- Mounting height
- 6 – 10 m / 8 – 12 m / 10 – 15 m
- Windage area
- 0.134 m² · 0.166 m² · 0.271 m²
- Wind survival
- Up to 60 m/s (216 km/h)
- Working temp.
- −40 °C to 55 °C
- Humidity
- Up to 95% RH
04Mechanical
- Dimensions (L × W × H) mm
- 422×318×136 · 522×318×136 · 853×318×136
- Weight
- 6 / 9 / 14 kg approx by SKU
- Housing
- High pressure die-cast aluminium
- Gasket
- Heat-resistant silicone rubber
- Front cover
- Tempered glass
- Finish
- Corrosion-resistant powder coating
- Certifications
- CE LVD · CE EMC · ISO 17025 · ILAC-recognised
- Classification
- IP66 / IK08
Where the road runs longestExceed Pro keeps going.
- LED
- Lumileds 3030 2D
- Efficacy
- ≥ 140 lm/W
- Lifetime
- 50,000 hrs
- Wind
- 60 m/s
- Surge
- 10 + 10 kV
- Ingress
- IP66 / IK08
Exceed Pro in the field
- 01
Motorways
Long-haul corridors that earn their wattage.
- 02
Industrial estates
Yards, perimeters, working all-night sites.
- 03
Container ports
Salt air, dust, decades of service.
- 04

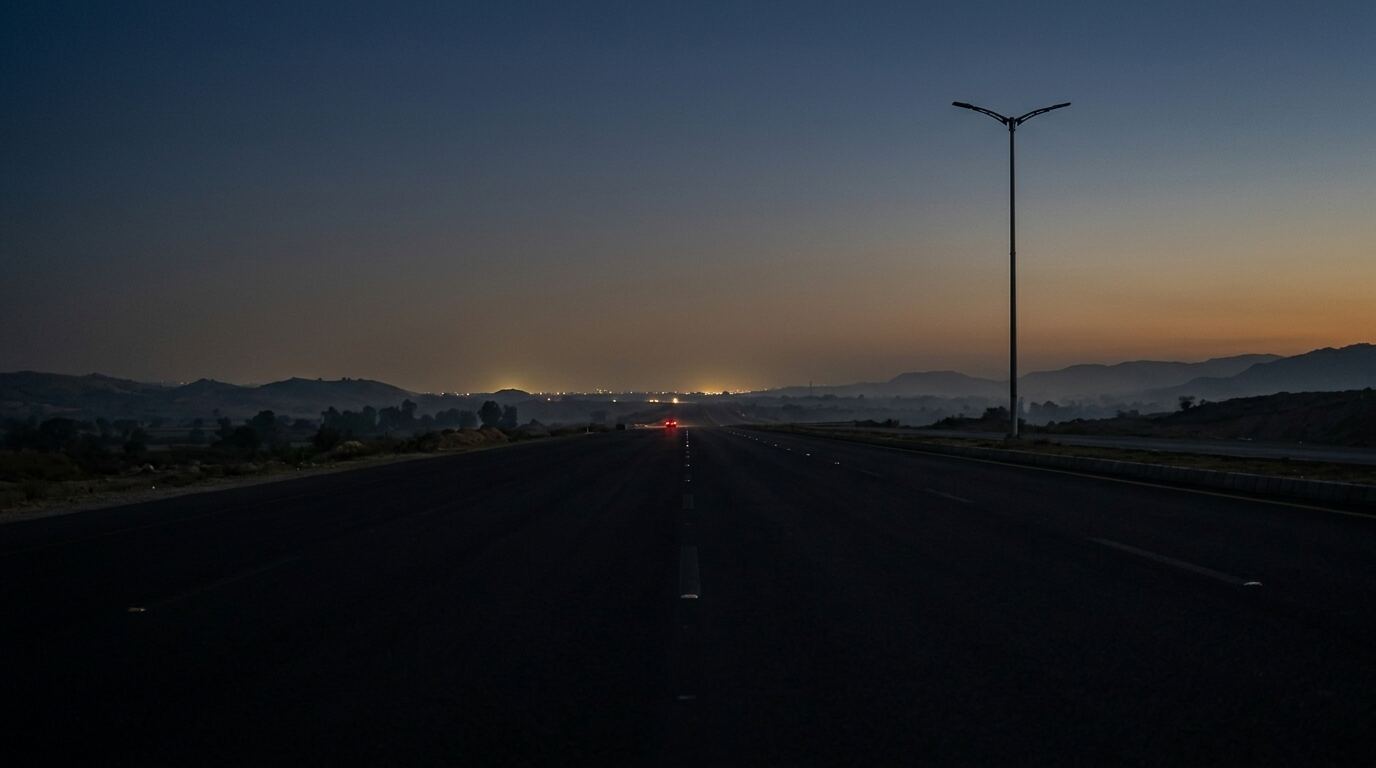

Major arterials
Six-lane city corridors that move freight.
40240W
The range of Exceed Pro, by application.
- 0140 W
Residential streets, parking lots
- 0260 W
Side streets, society interiors
- 0390 W
Secondary roads, urban interiors
- 04120 W
Major roads, urban arterials
- 05150 W
Highways, regional roads
- 06180 W
Expressways, industrial estates
- 07240 W
Motorways, container ports
